Saw DRAPER Mitre 255mm Double Bevel Compound Cut

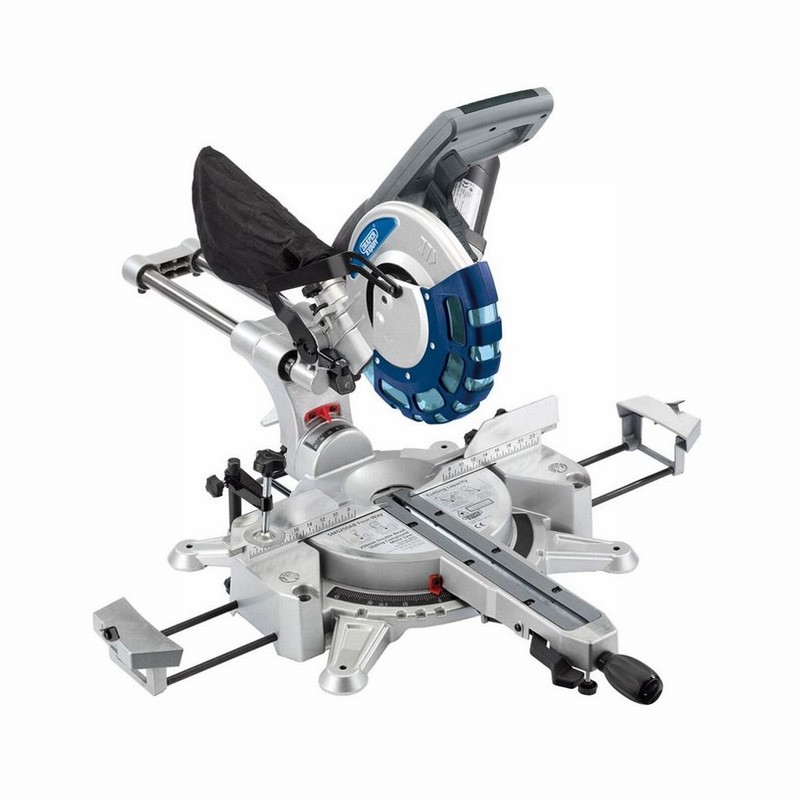

Draper 255mm Double Bevel Compound Cut Mitre Saw

Draper 255mm Double Bevel Compound Cut Mitre Saw

Expert Quality, powerful saw offering exceptional accuracy and performance. Double bevel feature enables mitre, bevel and compound cuts in both left and right directions. Other useful features include a depth stop (trenching facility), integral dust extraction, extension wings, stop bar, vice clamp and laser cutting guide. The table base and side extension wings are constructed from diecast aluminium. Fitted with a cable and approved plug. Supplied with 40T T.C.T. saw blade.

Specifications:

• Blade diameter: 255mm (10″)

• Bore: 30mm

• Speed: 5500r/min

• Left and Right preset index: 0°, 15°, 22.5°, 30°, 45°

• Maximum cutting capacities (H x W):

  • Straight cut at 0° x 0° … 77 x 340mm

  • Mitre cut at 45° x 0° … 77 x 240mm

  • Bevel(L) cut at 45° x 0° … 40 x 340mm

  • Bevel(R) cut at 45° x 0° … 26 x 340mm

  • Compound mitre(L) cut at 45° x 45° … 40 x 240mm

  • Compound mitre(R) cut at 45° x 45° … 26 x 240mm

Product Video:
