Milling Machine DRAPER

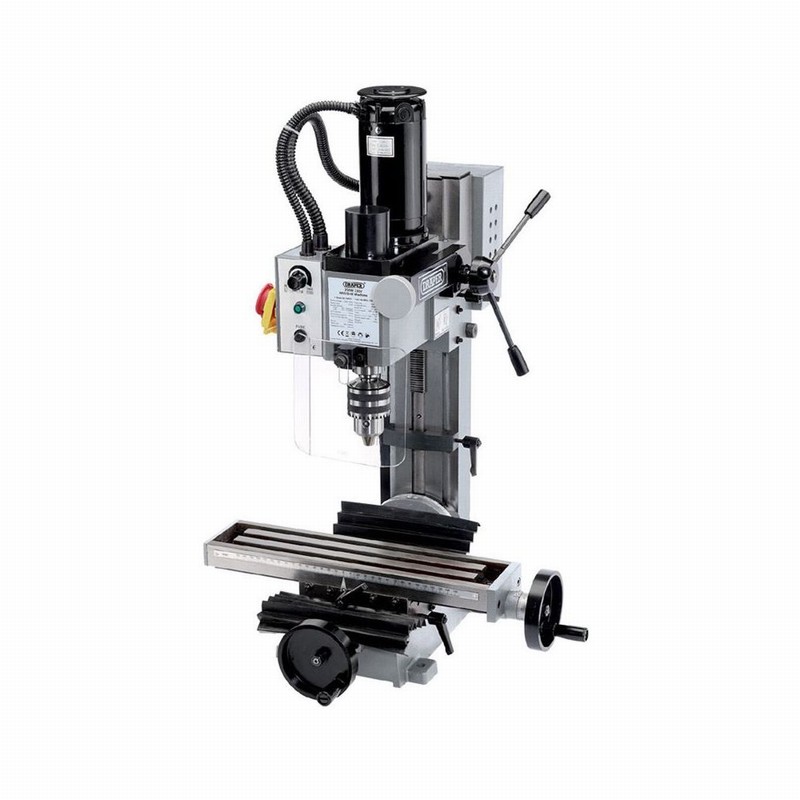

Draper 350w Variable Speed Milling and Drilling Machine

Draper 350w Variable Speed Milling and Drilling Machine – Precision metal working lathe, incorporated with a powerful 350W motor delivering excellent power output capable of handling most materials. The milling/drilling machine encompasses a working table with T slots, which enables clamping and securement of work. Each milling/drilling machine is fitted with metric graduated compound scales, column tilt feature (0-45°), a front mounted NVR switch and finely tuned 3-plane adjustment table. All these features make for an excellent milling/drilling machine, ideal for small industrial units.

Specifications:

• Drilling Capacity: 19mm

• Face Milling Capacity: 30mm

• End Milling Capacity: 16mm

• Headstock Travel: 180mm

• Cross Axis: 100mm

• Longitudinal Axis: 220mm

• Spindle Tilt Axis: ±0-45°

• Spindle Taper: MT3

• T-slot: 12mm

• Throat Depth: 170mm

• Table Size: 390 x 92mm

• Weight: 66kg

• Spindle Speeds:

  • Low: 100-1100r/min

  • High: 100-2500r/min
