Lathe Mini Wood 12×8″

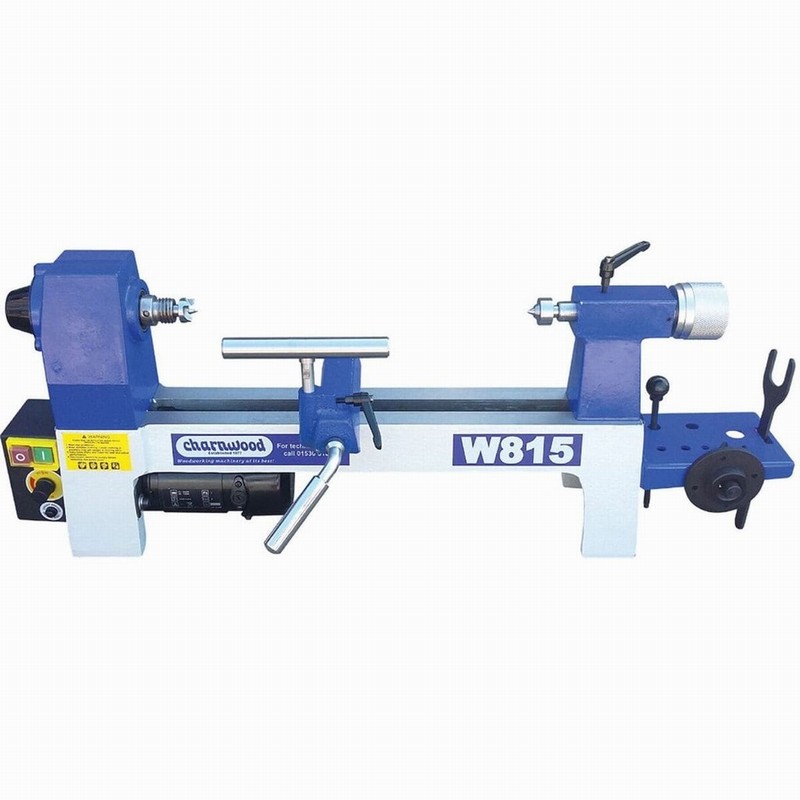

Charnwood W815 Mini Woodturning Lathe 8″ x 13″

A great value starter lathe and ideal for pen turners.

• Electronic Variable Speed


• Cast Iron Bed With Ground Top


• Cast Iron Headstock & Tailstock


• Drive Centre and Revolving Centre Included


• Cast Iron Tool Rest Banjo


• Large Chromed Lever To lock Tool Rest


• Onboard Storage For Accessories

Specifications:

• Max. spindle length (without centres):  385mm (15.4″)


• Max. spindle length (with centres fitted): 330mm (13″)


• Swing over bed (Max bowl diameter): 200mm (8″)


• Swing over banjo (Max bowl diameter): 135mm (5.4″)


• Motor (carbon brush): 250w (1/3hp), 240v


• Speed range: 750 – 3200rpm


• Spindle Thread Size: 1″ x 8tpi


• Head and tailstock tapers: 1MT


• Tailstock Through Bore: 9.5mm (3/8”)


• Tailstock Quill Travel: 35mm


• Tool Post Diameter : 12mm


• Bench Top to Spindle Centre: 250mm


• Dimensions (WxDxH): 690mm x 220mm x 310mm


• Weight: 20kg


• Assembly Time Required: 10 Minutes


• Product Rating: Hobby
