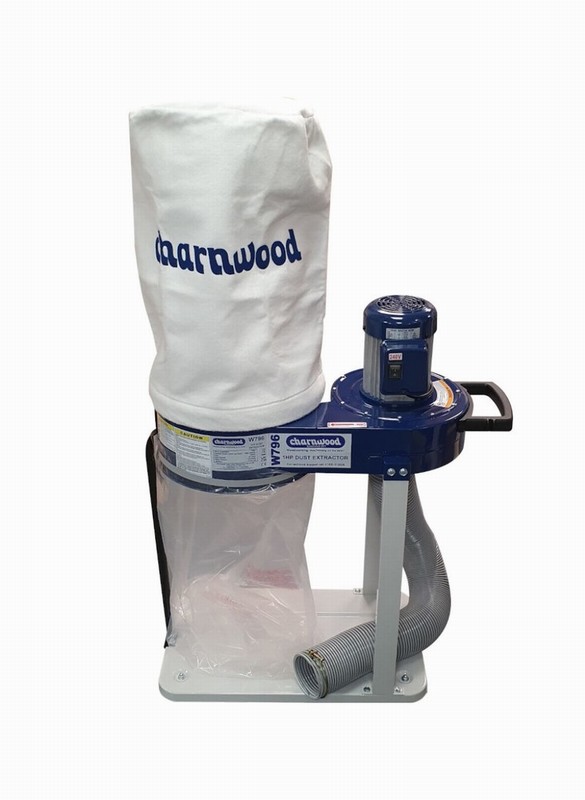

Charnwood W796 1hp Professional Dust Extractor

Charnwood W796 1hp Professional Dust Extractor

The W796 is a portable dust and chip extractor, aimed at the professional workshop needing to extract from one machine at a time.

• Professional Quality Motor


• Can Run up to 8 Hours a Day


• Ample 1000m3/hour Flowrate


• Quiet Induction Motor


• Transparent Collection Bag


• 2m Length of Hose Included


• Highly recommended for MDF users this unit is suitable for fine dust or chip producing machinery such as double mitre saws, sanders, routers, table saws, bandsaws and spindle moulders.

Using the now upgraded 2 micron fine mesh cotton filtration bag and a see through heavy gauge plastic collection bag both fastened by quick release metal straps, the workshop will be not only a cleaner environment but a healthier one as well.

Supplied with steel fan, 2m length of 100mm diameter flexible hose, 2 hose clips, 100mm inlet, transparent collection bag, 4 steering castors, 1.6m power cable and UK 3 pin plug. Runs on a standard 13 amp fused supply.

Please Note : Hose is Left Hand thread so for quick connector use: 100QCL

Specifications:

• Motor (Induction): 750w (1hp)


• Voltage: 240v, 50hz


• Airflow (Without Bag): 1000 m3/hour (750cfm)


• Max. Static Pressure: 127mmAq


• Inlet Diameter: 100mm


• Bag Capacity: 70 Litres


• Collector Drum Diameter: 370mm


• Noise Rating (@3m): 75dB


• Dimensions (WxDxH): 780mm x 390mm x 1370mm


• Weight: 28kg


• Assembly Time Required: 45 Minutes


• Rating: Trade
