Drill DRAPER Floor Standing 5 Speed Radial Arm

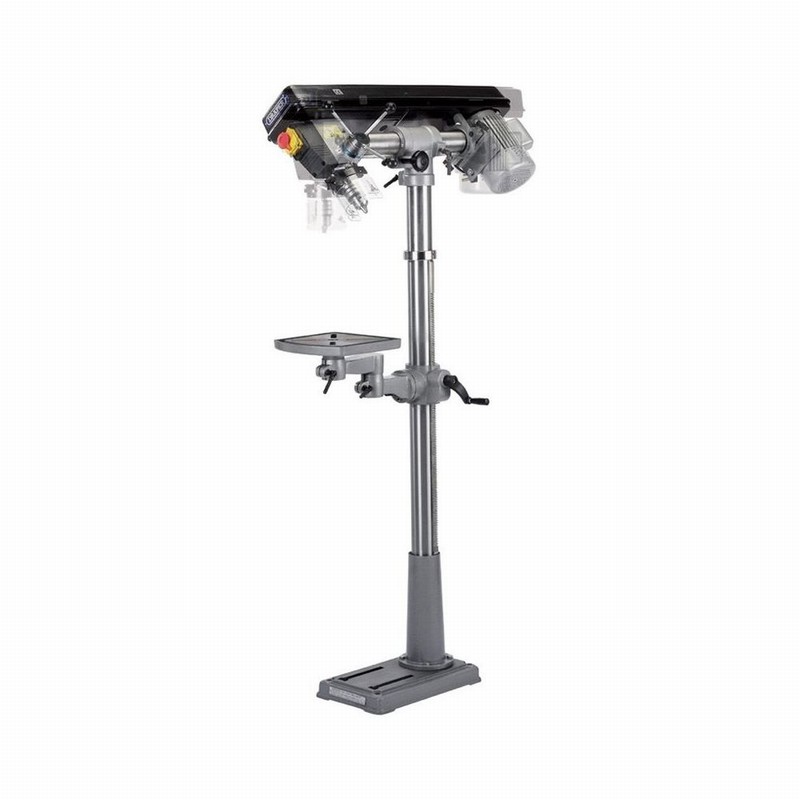

Draper 5 Speed Floor Standing Drill with Radial Arm

Draper 5 Speed Floor Standing Drill with Radial Arm

VDE no-volt switch

The five-speed pulley system and powerful 370W induction motor supply fantastic torque. Each drill is manufactured with a steel pillar, heavy-duty motor, MT2 chuck and a large heavyweight stabilising foot; all these features reinforce the robustness and quality of the drill. The table height is controlled via a rack and pinion system with left-right adjustment. Supplied with a telescopic chuck guard and a front mounted NVR switch for added convenience and safety. All these characteristics produce a floor standing drill best suited for accurate drilling in both hard and soft materials. A great choice if the hobbyist’s or light industrial user needs to save workbench space.

Specifications:

• Drilling capacity: 16mm

• Chuck capacity: 3-16mm

• Collar diameter: 60mm

• Spindle taper: MT2

• Speeds (r/min): 5 (460-2890)

• Swing (radial): 840mm

• Horizontal arm travel: 320mm

• Spindle travel: 80mm

• Column diameter: 70mm

• Table size: 260 x 260mm

• Throat depth: 380mm

• Base size: 420 x 250mm

• Height: 1630mm

• Weight: 65kg
