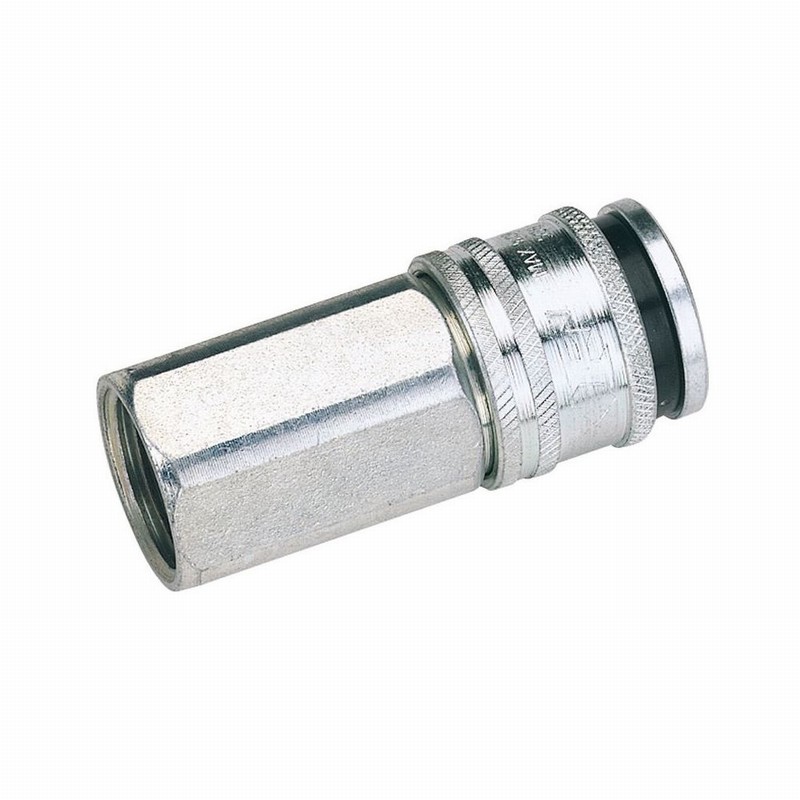

COUPLING EURO-XF 1/2″ FEMALE D

Draper Euro Coupling Female Thread 1/2″ BSP Parallel

Draper Euro Coupling Female Thread 1/2″ BSP Parallel

Features:

• For heavy duty high flow applications

• BSP parallel

• Tested to over 1 million cycles

• Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)

• Zinc passivated to significantly improve corrosion resistance

• Hard wearing steel construction

• Sold loose.

• Size: 1/2″

• Type: Female

Specifications:

• Flow capacity at 6 bar inlet and 0.5bar pressure drop: 78cfm (2200L/min)

• Max. working pressure: 500psi (35bar)

• Test pressure: 725psi (50bar)

• Max. burst pressure: 2030psi (140bar)

• Temp. range: -40 to 100°C

• Nominal flow diameter: 7.4mm
