IP67 5.8mm 2 Way Articulating Borescope Kit with 3.5″ Monitor SD Recording and Case
IP67 5.8mm 2 Way Articulating Borescope Kit with 3.5″ Monitor SD Recording and Case

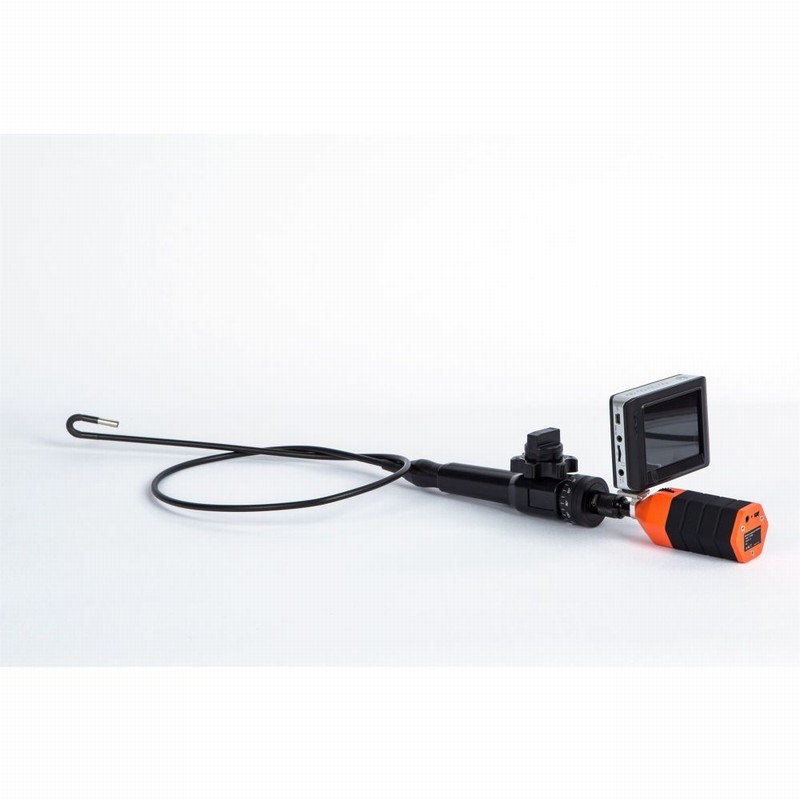

This 3.5″ HD full color 2-way 5.8mm articulating video borescope allows you to view and inspect hard to reach area. It has 5.8mm lens diameter with 4 adjustable LED lights for dark area inspection. Equipped with IP67 waterproof camera with 1m flexible tube that extends the area of inspection.
This Inspection Camera can work on different fields such as in auto maintenance and production, engine inspection, plane repair, emergency rescue, army exploration, pipeline detection, sewerage maintenance, and in any deep area that can’t be reach by human hands
Features:
-
5.8mm color camera head
-
Resolution: 300,000 pixels
-
Articulation: 2-way,300 degrees
-
4 white leds for night vision
-
Flexible tube, 1m lengh
-
3.5″ wireless monitor with SD card recording/still image capture
-
Rechargeable li-battery in both camera handle and monitor
-
Water proof level: IP67
-
With Aluminium tool case
Specifications:
| Camera | |
|---|---|
| Image sensor | CMOS |
| Diam. of Insertion Tube | 5.8mm |
| Insertion Flexible Tube Length | 1m |
| Light Source | 4 high intensity LEDs for 1.5m lighting distance |
| Effective Pixels | 640 x 480(NTSC) / 640 x 480(PAL) |
| Field of View (FOV) | 55° |
| Bending angl | 300° |
| Water Proof | IP67 (Probe only) |
| Illuminative distance | 0-0.5m |
| Wireless Transmission distance | 10m(Max.) |
| Transmitting frequency | 2468Mhz |
| Current consumption | 260mA |
| Work Time | 5 hours |
| Weight | 259g |
| Operation Temperature | -10oC ~ 60oC |
| Monitor | |
|---|---|
| Screen Size | 3.5″ TFT-LCD |
| Display Resolution | 320(R.G.B.) x 240dot |
| Video Format | NTSC / PAL |
| Modulation Mode | FM |
| Receive Sensitivity | -85dBm (module) |
| Built-in Li-Battery Capacity | 1100MAH/3.7V |
| Charge Time/Work Time | 3 hours |
| Consumption Current | 500MA(MAX) |
| Memory | Micro SD Card |
| Picture Format | JPG |
| Video Format | AVI |
| Picture/Video Resolution | 640×480 |
| Frame Rate | 30Frame/S |
| Operation Temperature | 0~+45oC |
| Storage Temperature | -20~+60oC |
Contents:
-
1 x Camera probe
-
1 x Monitor
-
1 x USB cable
-
1 x Video out cable
-
1 x Power adapter for monitor
-
1 x Power adapter for camera
-
1 x Manual
-
1 x Aluminium Case
