Bench Grinder / Polisher 3″ with Flexible Drive

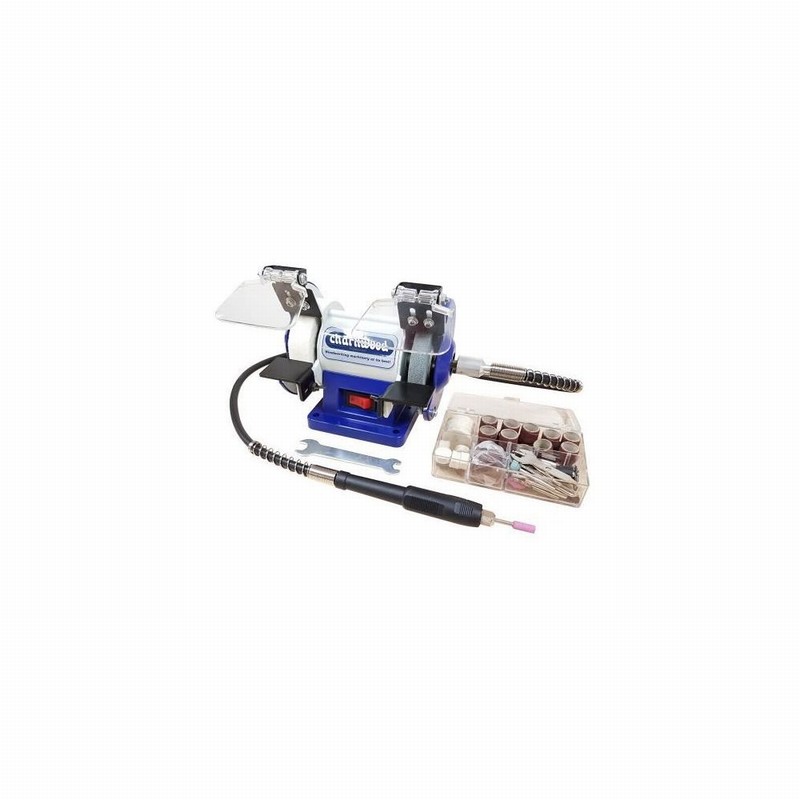

Charnwood 3″ Bench Grinder and Polisher with Flexible Drive

Charnwood 3″ Bench Grinder and Polisher with Flexible Drive

A compact and versatile mini bench grinder for model makers.

This is really a multi-purpose tool capable of carrying out grinding, polishing & sanding operations on small components.

One side is fitted with a grey grinding stone for sharpening (chisels, drill bits and tools), reshaping, deburring etc…

The other side is fitted with a soft polishing wheel, able to polish and smooth all kinds of materials, such as precious metals, non-ferrous metals, stainless steel, glass, porcelain, wood, rubber and plastic. Some materials will require a suitable polishing compound to be used.

To add another level of versatility, we also include a power take off to fit a flexible rotary shaft. The rotary shaft has a 3.2mm collet chuck (compatible with Dremel type tools) and we include a 100 piece accessory kit enabling a wide variety of applications such as engraving, carving, routing, cutting, sanding & polishing.

The grinder sits on 4 rubber feet to provide a stable platform. It can also be secured to a work bench using the 4 mounting points provided.

Supplied with spark guards, eye shields, tool rests, rotary shaft, 100 piece accessory kit, 1.75m cable and UK 3 pin plug.

Specifications:

• Motor (Induction): 50w (0.06hp)

• Voltage: 220~240v, 50hz

• Max. Continuous Run Time: 30 minutes

• No Load Speed: 2850rpm

• Spindle Diameter: 12.7mm (1/2″)

• Grinding Wheel: 75mm (3″) x 20mm (3/4″)

• Grinding Wheel: Grit Size 80g

• Polishing Wheel: 75mm (3″) x 13mm (1/2″)

• Flexible Rotary Shaft Length: 1000mm

• Flexible Rotary Shaft Speed: 2850rpm

• Flexible Rotary Shaft Chuck: 3.2mm

• Assembled Dimensions (WxDxH): 170mm x 190mm x 150mm

• Shipping Dimensions (WxDxH): 230mm x 300mm x 210mm

• Weight: 4kg

• Rating: Hobby
