Borescope Kit 5.8mm 3.5" Mon IP67 SD Rec 2Way Art. Case

Price: £929.89

Stock Code: WSDB5.8A2

Buy Now
In Stock

IP67 5.8mm 2 Way Articulating Borescope Kit with 3.5" Monitor SD Recording and Case


IP67 5.8mm 2 Way Articulating Borescope Kit with 3.5" Monitor SD Recording and Case

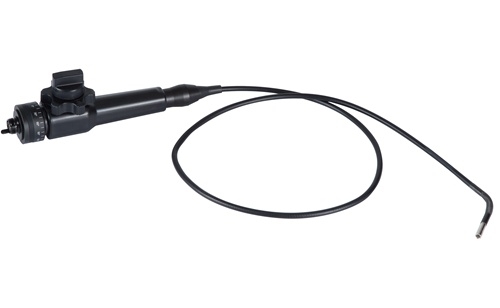

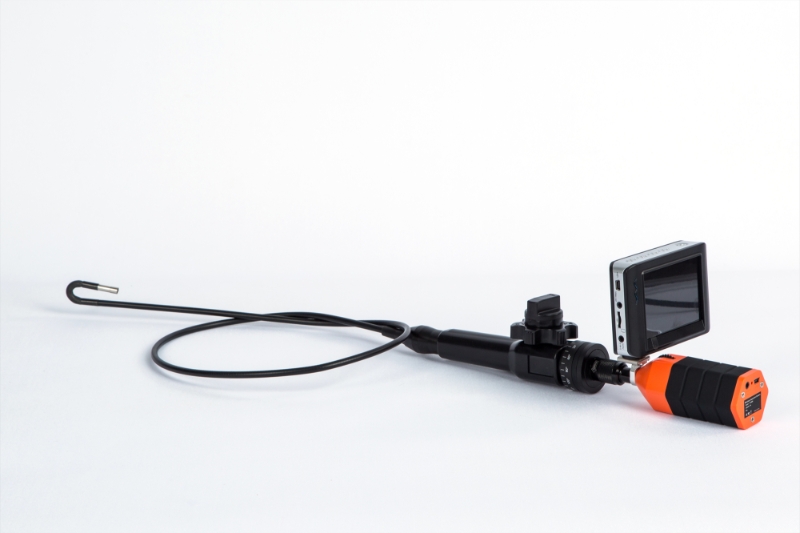

This 3.5" HD full color 2-way 5.8mm articulating video borescope allows you to view and inspect hard to reach area. It has 5.8mm lens diameter with 4 adjustable LED lights for dark area inspection. Equipped with IP67 waterproof camera with 1m flexible tube that extends the area of inspection.

This Inspection Camera can work on different fields such as in auto maintenance and production, engine inspection, plane repair, emergency rescue, army exploration, pipeline detection, sewerage maintenance, and in any deep area that can't be reach by human hands

Features:

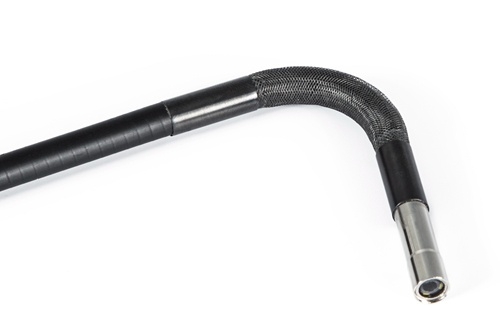

  • 5.8mm color camera head

  • Resolution: 300,000 pixels

  • Articulation: 2-way,300 degrees

  • 4 white leds for night vision

  • Flexible tube, 1m lengh

  • 3.5" wireless monitor with SD card recording/still image capture

  • Rechargeable li-battery in both camera handle and monitor

  • Water proof level: IP67

  • With Aluminium tool case

Specifications:

Camera
Image sensor CMOS
Diam. of Insertion Tube 5.8mm
Insertion Flexible Tube Length 1m
Light Source 4 high intensity LEDs for 1.5m lighting distance
Effective Pixels 640 x 480(NTSC) / 640 x 480(PAL)
Field of View (FOV) 55°
Bending angl 300°
Water Proof IP67 (Probe only)
Illuminative distance 0-0.5m
Wireless Transmission distance 10m(Max.)
Transmitting frequency 2468Mhz
Current consumption 260mA
Work Time 5 hours
Weight 259g
Operation Temperature -10oC ~ 60oC


Monitor

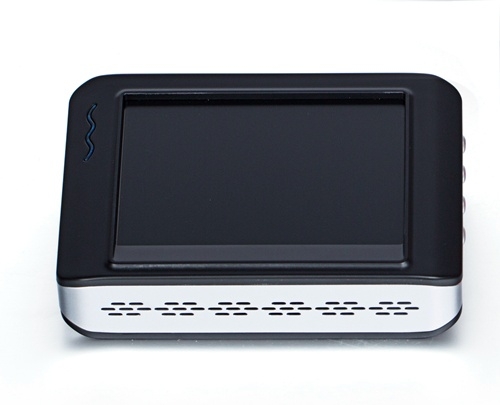

Screen Size 3.5" TFT-LCD
Display Resolution 320(R.G.B.) x 240dot
Video Format NTSC / PAL
Modulation Mode FM
Receive Sensitivity -85dBm (module)
Built-in Li-Battery Capacity 1100MAH/3.7V
Charge Time/Work Time 3 hours
Consumption Current 500MA(MAX)
Memory Micro SD Card
Picture Format JPG
Video Format AVI
Picture/Video Resolution 640x480
Frame Rate 30Frame/S
Operation Temperature 0~+45oC
Storage Temperature -20~+60oC


Contents:

  • 1 x Camera probe

  • 1 x Monitor

  • 1 x USB cable

  • 1 x Video out cable

  • 1 x Power adapter for monitor

  • 1 x Power adapter for camera

  • 1 x Manual

  • 1 x Aluminium Case
